Docker Made Crystal Clear · chapter 3: Images, Layers, and Where Containers Come From
Tag anatomy
2026-09-16
Every image reference is the same four-part address; anything you leave out is filled by a default (docker.io, library, latest). The expansions are the docs' own examples, including a reference on a non-Hub registry where nothing defaults.
Below: the paragraph from the book that builds this idea, then the diagram itself (Figure 3.2), and a recap. About a minute of reading.

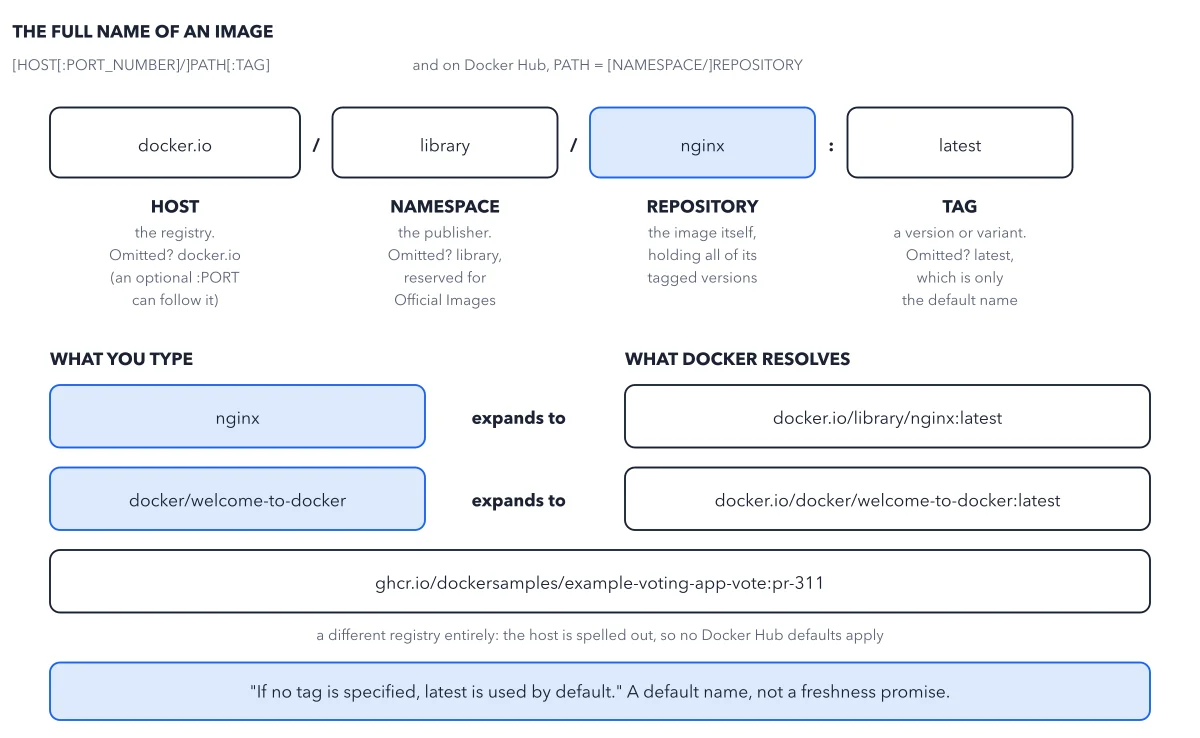

Every image you have ever named, nginx, postgres, ubuntu, was shorthand. The full structure of an image name, straight from the docs, is [HOST[:PORT_NUMBER]/]PATH[:TAG]. Four parts, three of which have defaults, which is why the shorthand works. Reading it left to right: HOST is the registry, defaulting to docker.io (Docker Hub) when omitted; an optional PORT_NUMBER can follow the host; PATH is slash-separated, and on Docker Hub takes the form [NAMESPACE/]REPOSITORY, where a missing namespace defaults to library, the space reserved for Official Images; and TAG names a version or variant of the image. Figure 3.2 dissects a familiar name and shows the expansions the docs give.
Recap
- The idea: Every image reference is the same four-part address; anything you leave out is filled by a default (docker.io, library, latest).
- The picture: Figure 3.2, from chapter 3 ("Images, Layers, and Where Containers Come From") of Docker Made Crystal Clear.
- Go deeper: the chapter builds this step by step, with recipes and sources at the end.
