GitHub Made Crystal Clear · chapter 3: The GitHub flow: branch, pull request, merge
One pull request, three buttons, three histories
2026-10-18
The starting graph is identical in all three cases; only what reaches main differs.
Below: the paragraph from the book that builds this idea, then the diagram itself (Figure 3.2), and a recap. About a minute of reading.

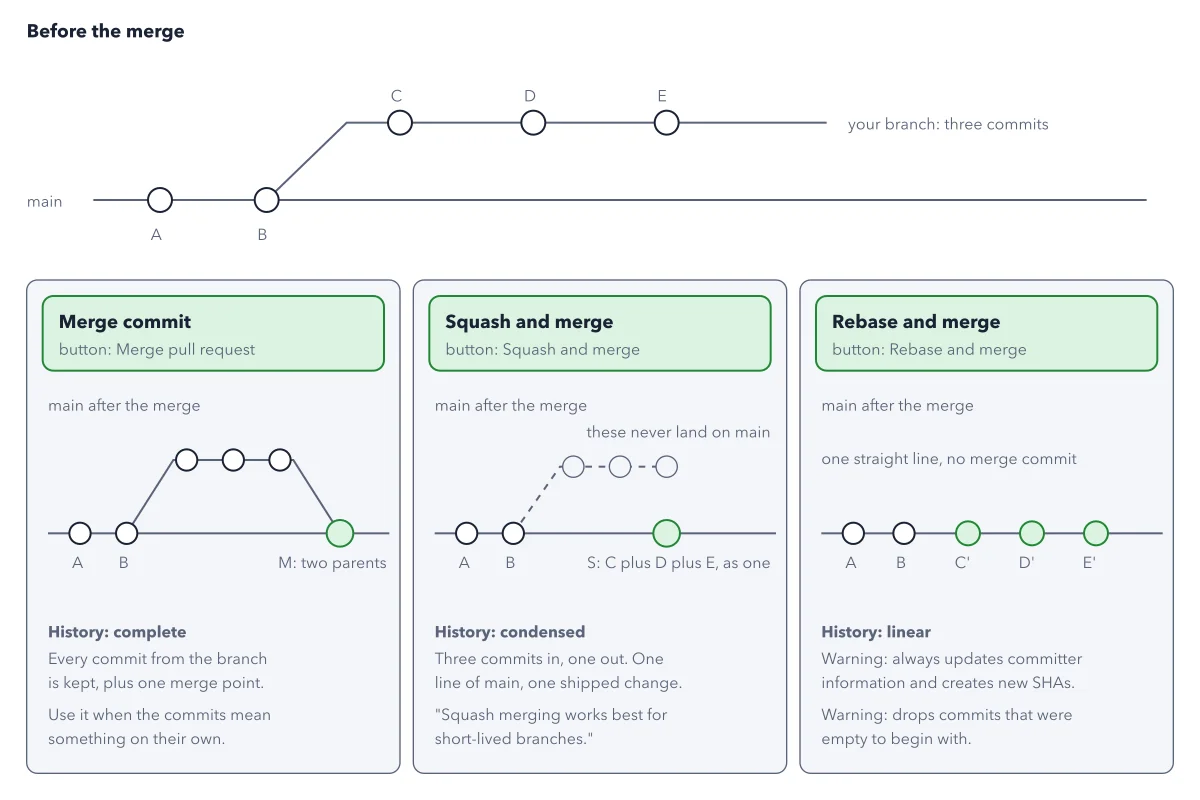

The merge box hides a real decision behind a dropdown. GitHub offers three merge methods, and they produce three genuinely different commit histories from the same pull request. Which of them you can use is a repository setting: each method can be allowed or disallowed independently under Settings, then Pull Requests. Figure 3.2 draws the same starting graph, then what main looks like after each button.
Recap
- The idea: The starting graph is identical in all three cases; only what reaches main differs.
- The picture: Figure 3.2, from chapter 3 ("The GitHub flow: branch, pull request, merge") of GitHub Made Crystal Clear.
- Go deeper: the chapter builds this step by step, with recipes and sources at the end.
